RPM Innovations (USA) is a Direct Energy Deposition (DED) Metal 3D printer.
The company has a device lineup of three models (222XR, 535XR, 557XR) for each modeling size.
All machines have 5 axes, enabling laser freeform fabrication, laser repair, and laser cladding.
3DP modeling of additional parts to parts manufactured by conventional methods (forging/casting), which was considered impossible until now, is now possible.

•

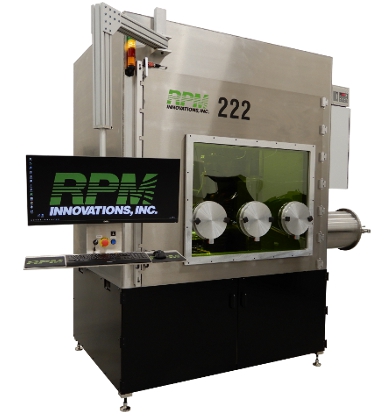

  RPMI 222XR
•

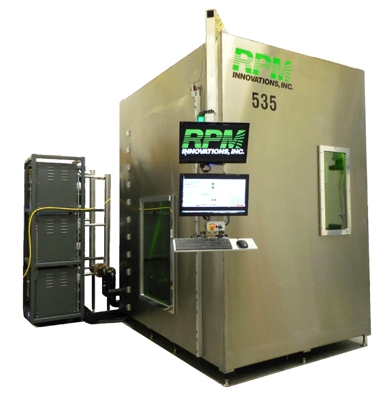

  RPMI 535XR
•

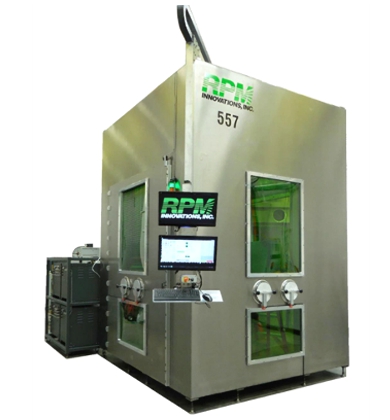

  RPMI 557XR

Machine Spec

・Max Build Space
RPMI222XR：W600 × D600 x H600 mm
RPMI535XR：W1500 x D900 x H1500 mm
RPMI557XR：W1500 x D1500 x H2100 mm
・5 Axis CNC Control ( X / Y / Z / Tilt / Rotation Table)
・1 / 2 / 3 kW IPG Fiber Laser
・Tool path code generator
・Process parameters: Open

Materials

Ti-6Al-4V、SUS316L、Inconel 718、Inconel 625、CoCrMo、WC-Ni、WC-Co、Cu Alloy、AlSi10Mg

PDFCatalog

LOGIN

※To view the detailed catalog of "RPM Innovations" products, a passkey is required.
Please Contact us

Movie

Laser Deposition Technology (LDT)
About RPM Innovations and RPM Companies
Laser Deposition Technology Featured on Enterprises with Terry Bradshaw

Maker

RPM Innovations
